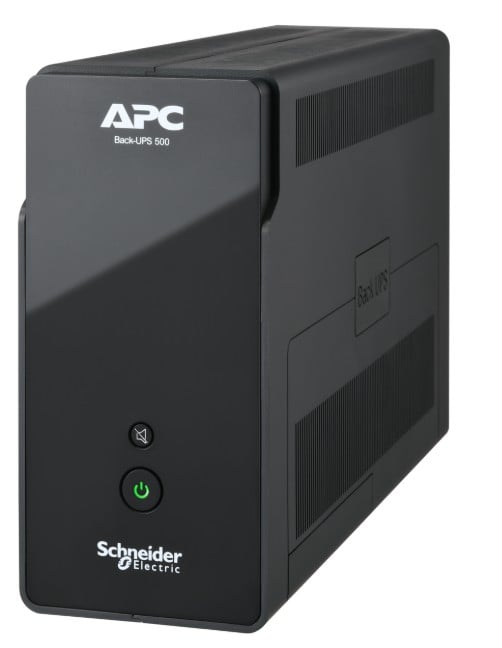

BK500G2I-AS | APC Back-UPS, 500VA/300W, 6 IEC, USB communication, Tower, 230V, Lead-acid battery, Input IEC 60320 IEC 60309, Output 6 IEC 60320 C13 surge, 1.5m cabl

APC Back-UPS, 500VA/300W, 6 IEC, USB communication, Tower, 230V

This APC Back-UPS offers power and surge protection for wireless networks, computers, and other electronics in your home or business. The 500VA tower UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 1080 Joules. It features Automatic Voltage Regulation to smooth out voltage fluctuations from mains power supply without swtching to battery. This UPS has a 3 year warranty and CE product certification (3-year exclusive for EU, UK and Ireland). It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. It comes with PowerChute Serial Shutdown, UPS management software with graceful shutdown and innovative energy management capabilities. EcoStruxure IT SmartConnect integration via PowerChute Link for enhanced monitoring, efficiency, and performance management.

Main
Run time for load
300
W
Min-max: 30-300 W
6min 10s
Max. Capacity Used
100 %
Main Input Voltage
230 V
Main Output Voltage
230 V
Other Output Voltage
230 V
Rated power in W
300 W
rated power in VA
500 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
IEC 60320 IEC 60309
output connection type
6 IEC 60320 C13 surge
Cable length
1.5 m
Number of cables
1
Battery type
Lead-acid battery
Range of product
Back-UPS
USB Charging Port
None
Replacement battery
RBC17
Graphs
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Complementary
UPS connectivity
USB port
Battery type
Lead-acid internal included
Mounting mode
Tower
Batteries Runtime
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
8 h
Battery charger power
20 W rated
Battery power in VAH
102 VAh runtime
Battery life
3…5 year(s)
Extended runtime
0
General
Number of power module free slots
0
Number of power module filled slots
0
Redundant
No
Physical
Colour
Black
Height
190 mm
Width
91 mm
Depth
310 mm
Net weight
6.1 kg
Mounting preference
No preference
Mounting mode
Not rack-mountable
USB compatible
Yes
Input
Network frequency
50/60 Hz +/- 5 Hz auto-sensing
Plug standard
IEC 60309
Input voltage limits
176…294 V
Maximum input current
10 A
Output
Maximum configurable power in W
300 W
Output frequency
47…63 Hz +/- 0.1 % for 50 Hz nominal sync to mains
UPS type
Line interactive
Wave type
Stepped approximation to a sinewave
Output voltage tolerance
+/- 5% static and 100% load step
Maximum output current
10 A
Maximum configurable power in VA
500 VA
Transfer time
8 ms typical : 10 ms maximum
Conformance
Product certifications
CE
Equipment protection policy
Lifetime : 75000 euros
Environmental
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 %
Operating altitude
0…3000 m
Ambient air temperature for storage
-15…45 °C
Storage Relative Humidity
0…95 %
Acoustic level
45 dBA
Heat dissipation
71.3 Btu/h
Communications Management
Control panel
LED Status display with on line : on battery : replace battery and overload indicators
Surge Protection and Filtering
Surge energy rate
1080 J
Noise suppression
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
28.0 cm
Package 1 Width
16.3 cm
Package 1 Length
39.5 cm
Package 1 Weight
7.3 kg
SCC14
10731304828423
Contractual warranty
Warranty (in months)
12 Battery|24 UPS
